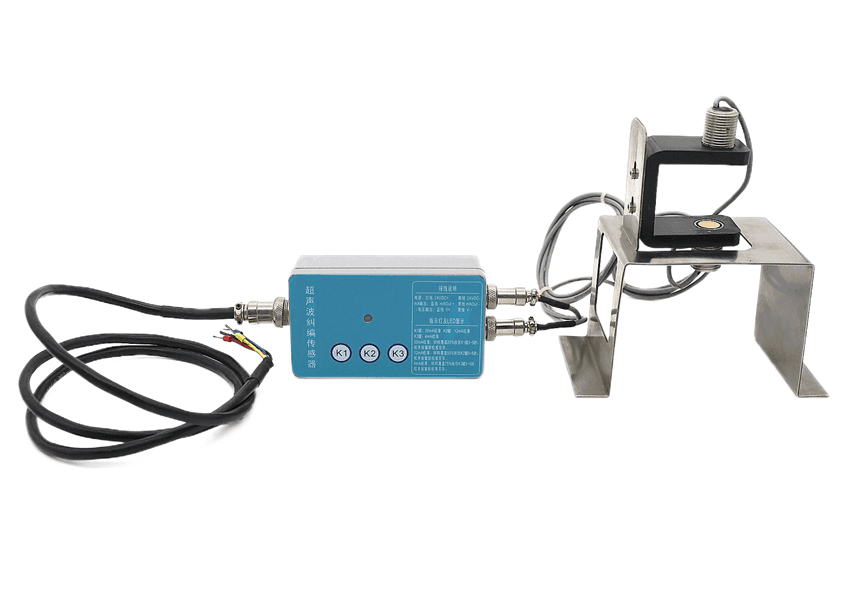

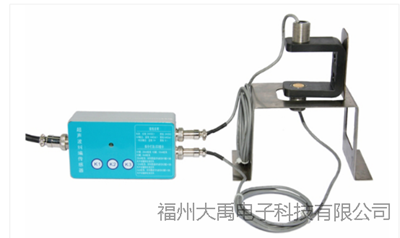

Ultrasonic edge guide sensor

Ultrasonic deviation Sensor  is also called ultrasonic edge guideSensor

1. Function Description

The ultrasonic deviation Sensor is suitable for detecting any material, except materials that can transmit sound waves (such as non-porous textiles).

The main advantage of the ultrasonic deviation Sensor is that it can detect transparent materials, making frequent material change operations simple.

2. Technical Parameters

Measuring width: 8mm (8mm is the effective range; the actual diameter of the Sensor is 12mm)

Resolution: 0.2mm

Sampling rate: 2ms

Output Signal：4-20mA

4mA  when the strip blocks 75% of the Sensor

20mA  when the strip does not block 25% of the Sensor

12mA  when the strip does not block 50% of the Sensor

Operating Voltage: 24VDC

Operating temperature range: -20 ℃ ~ +60℃

Protection Rating: IP65

3. Wiring

Red wire: 24VDC+   Black wire: 24VDC-

Blue wire: mAOut +   Yellow wire: mAOut -

(Voltage 0-10V output: blue wire V +    yellow wire V –)

 4. Calibration Method

K1 key: 20mA calibration   K2 key: 12mA calibration   K3 key: 4mA calibration

20mA calibration: cover 25% of the Sensor with material, press and hold the K1 key for 3~5 seconds, release the key to complete the calibration.

12mA calibration: cover 50% of the Sensor with material, press and hold the K2 key for 3~5 seconds, release the key to complete the calibration.

4mA calibration: cover 75% of the Sensor with material, press and hold the K3 key for 3~5 seconds, release the key to complete the calibration.
