　　1. Requirements Overview

　　Use the company's ultrasonic wood panel defect detection sensor to inspect manufactured wood panels for defects such as blistering, hollow areas, cracks, and poor bonding. The on-site conditions are summarized as follows:

　　1. Conveyor line width is 1300mm, net roller spacing is 135mm, and roller center-to-center distance is 200mm;

　　2. Panel dimensions: length L=2440 or 1220mm; width W=1220mm; thickness H=8mm (base panel 8mm, aluminum skin 0.3, adhesive layer thickness 0.03-0.04mm, total thickness 8.33-8.34mm);

　　3. Conveyor speed is adjustable, approximately 2.5 panels/minute, about 0.1 m/s

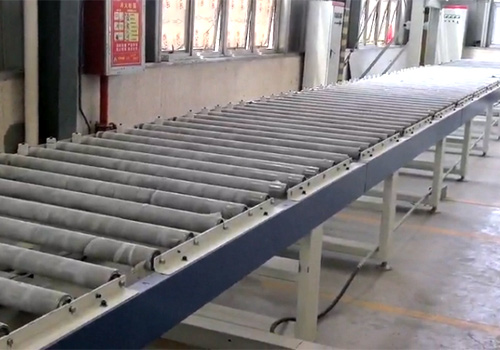

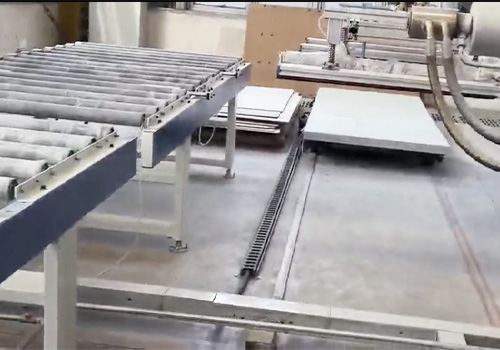

　　On-site equipment photos

　　Solution Description

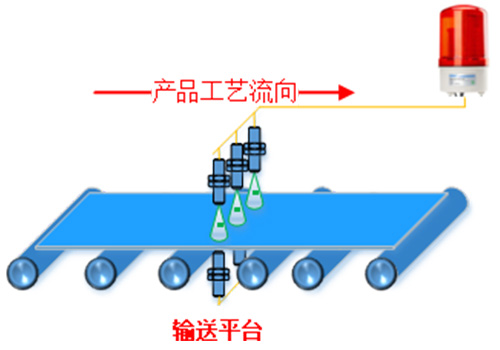

　　1. Solution Schematic

　　2. Sensor Layout Diagram

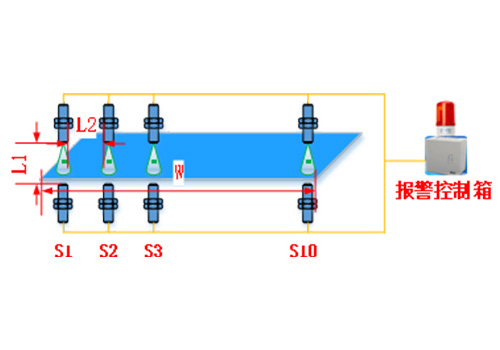

　　Notes:

　　A. Panel width W=1220mm, 10 pairs of sensors are arranged;

　　B. The distance between the faces of each sensor pair is L1=100mm;

　　C. The spacing between sensors is approximately L2=94mm, and the sensors at the head and tail are about 47mm from the panel edge.

　　3. Solution Explanation

　　A. The sensor outputs a switching signal based on the quality of the panel being inspected. This output can be connected to an alarm indicator light; when a defective panel is detected, the switching signal triggers an audible and visual alarm.

　　B. The sensors are mounted using fixed brackets, with the panel passing between them; the face-to-face distance between each pair of sensors is approximately 60-120mm.

　　4. Key Technical Specifications

　　Operating Mode: Through-beam

　　Operating Voltage: 18V-30V DC

　　Detection Range: 20-120mm; Ideal: 90-110mm

　　Transducer Frequency: 70kHz ±10%

　　Indication:

　　Blue LED: No material

　　Green LED: Normal

　　Red LED: Defect

　　No-load Current: <80mA

　　Full-load Current: 3×100mA

　　Power Consumption at 24V: 24V×100mA=2.4W

　　Response/Off Delay: approximately 15ms

　　Impedance: ≥4kΩ

　　Output Signal: 3 switching outputs, NPN normally open

　　Operating Temperature: -20 to 60°C

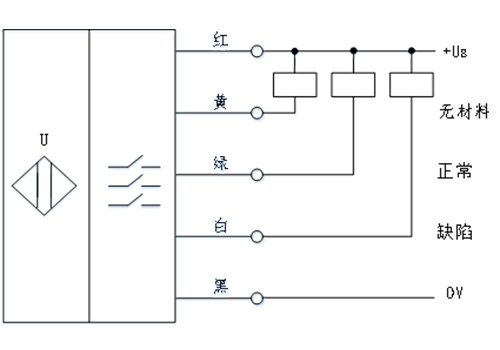

　　NPN Output Wiring Diagram:

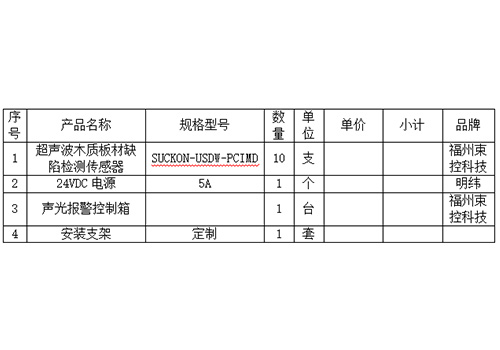

　　5. Equipment List
