Transducer Selection for Ultrasonic Transit-Time Flow Measurement Chambers: The Working Conditions Decide Everything![Dayu Electronics]

　　Customers often ask how to select the right ultrasonic transit-time flow measurement chamber transducer.

　　Different working conditions require different transducers, depending on the specific application.

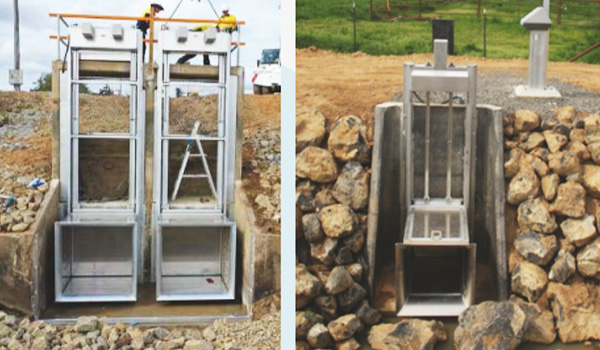

　　Below, let's first take a look at what a transit-time flow measurement chamber looks like.

　　Ultrasonic transit-time flow measurement chamber

　　Water quality: standard water quality. The water contains no solid particles, with up to 0.1% powdered solids.

　　Water flow velocity range: minimum 0.2 m/s, maximum 10.0 m/s.

　　The transducers for the transit-time flow measurement chamber fall into the following two categories:

　　Note: The following transducer selections are conventional choices and do not take into account the developer's circuit design level or software algorithm capabilities.

　　Category 1:

　　Used on a transit-time flow measurement chamber with a maximum width of 1.5 meters. This range is relatively low, and a small, relatively high-frequency transducer can be selected, such as:

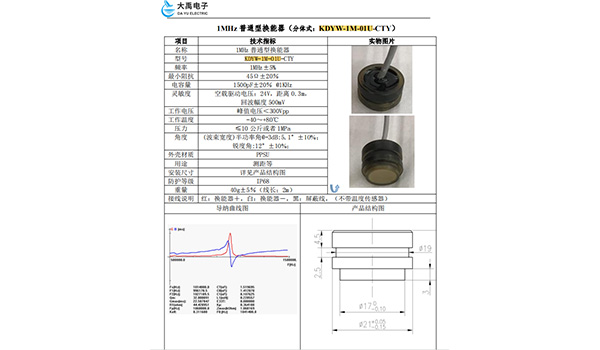

　　Transducer frequency: 1 MHz.

　　Model: KDYW-1M-01U-CTY;

　　Category 2:

　　Used on a transit-time flow measurement chamber with a maximum width of 1.5 meters.

　　The water contains up to 1% granular solids or up to 5% powdered solids. This working condition requires a transducer with a relatively high frequency and stronger penetration, such as:

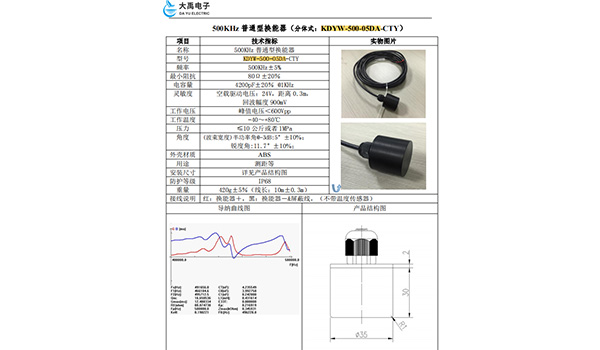

　　Transducer frequency: 500 kHz.

　　Model: KDYW-500-05DA-CTY;

　　If you are also developing a transit-time flow measurement chamber and don't know how to select the right transducer, feel free to contact Fuzhou Dayu Electronics—a manufacturer with 15 years of experience in custom ultrasonic transducers. Our engineers will assist you with 1-on-1 selection.
