Doppler flow meter is a device commonly used to measure liquid flow, operating on the principle of the Doppler effect, which calculates the overall flow rate by measuring the velocity of discrete particles in the fluid. Sewers are one of the main channels for urban wastewater discharge, and accurate flow measurement in sewers is crucial for the design and operation of municipal drainage systems.
Case Background: A city's sewer system had persistent inaccuracies in flow measurement, causing challenges in the planning and management of the drainage system. Traditional methods using pressure or open-channel flow meters required frequent maintenance and calibration and were limited by particulate matter in the fluid. Therefore, the city decided to adopt a Doppler flow meter to address these issues.

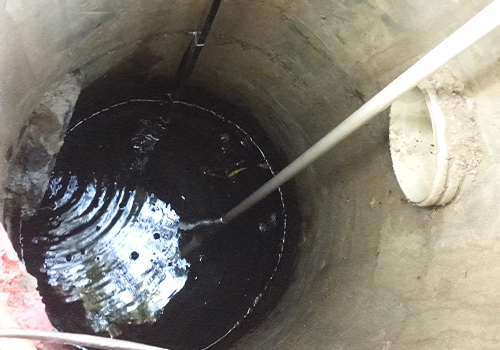

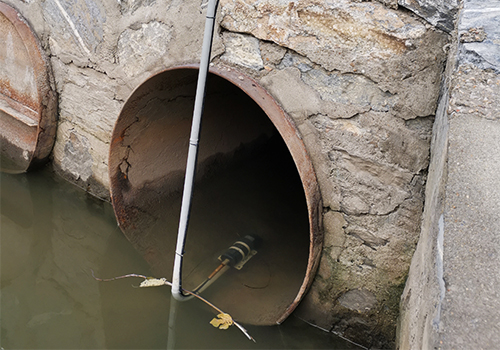

Implementation: To accurately measure the flow in the sewer, the city made necessary improvements and optimizations to the Doppler flow meter. First, the sensor was selected and configured, and installed at an appropriate location in the sewer. Next, the Doppler flow meter was calibrated and adjusted to ensure measurement accuracy and stability. Finally, comparative tests with traditional measurement methods verified the feasibility and advantages of the Doppler flow meter.
Case Results: After implementing the Doppler flow meter solution, the city successfully resolved the sewer flow measurement accuracy issues. The Doppler flow meter not only improved measurement accuracy and stability but also offered the following advantages:
1. Not limited by particulate matter in the fluid: Traditional flow meters are easily disturbed by particulate matter in the fluid, whereas the Doppler flow meter can accurately measure liquid flow containing particulates.
2. No frequent maintenance or calibration required: The Doppler flow meter's sensor has a simple structure that is not easily contaminated or damaged, thus reducing the frequency and cost of maintenance and calibration.
3. Real-time monitoring and data logging: The Doppler flow meter can monitor sewer flow changes in real time and record the data for subsequent analysis and decision-making.
Conclusion: By introducing the Doppler flow meter, the city successfully resolved the sewer flow measurement problem, improving measurement accuracy and stability, and providing reliable data support for the planning and management of the city's drainage system. The application of Doppler flow meters in sewer flow measurement has broad prospects and can serve as a reference for drainage systems in other cities.
