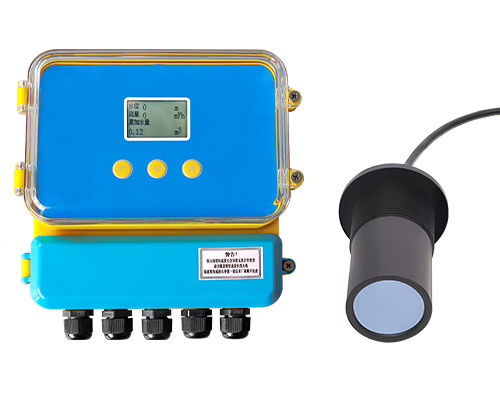

Ultrasonic Open Channel Flow Meter [Dayu Electronics]

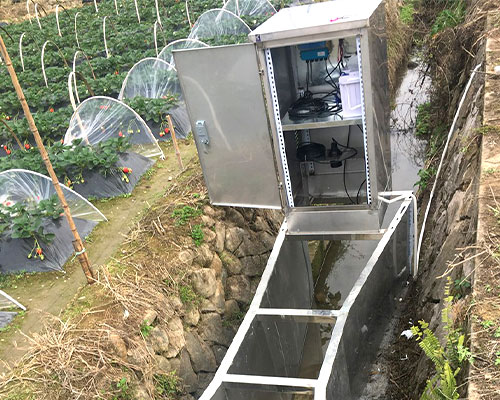

Ultrasonic open channel flow meter is a non-contact measuring instrument. It features flow display, totalization, control, transmission, and power failure protection. It is mainly suitable for measuring irrigation water flow in agricultural water conservancy and ecological flow in hydropower stations. With IP68 whole-unit protection, corrosion resistance, and explosion-proof design, it can operate safely in flammable and explosive factory environments. It can also measure corrosive liquid media without easy damage, ensuring the accuracy and consistency of measurement data. It features a simple structure, compact size, easy installation, and low power consumption, and can measure a wide range of sewage flows.
The measurement range is large, and flow measurement is not affected by backwater from tributary surfaces.
Measurement is not affected by floating debris, sediment, bubbles, or large water level fluctuations. The flow sensor offers minimal resistance to water flow, with a simple structure, compact size, and easy installation.
The instrument offers complete display and output functions, showing measurement data such as water level, flow velocity, flow rate, and cumulative flow, and is equipped with an RS-485 communication interface.
It features over-limit alarms for water level, sludge level, and flow velocity.
It features data storage, allowing settings parameters and flow values to be retained during prolonged power outages.
