Integrated Ultrasonic Level Gauge Installed in a Tributary Connected to the Yangtze River [Dayu Electronics]

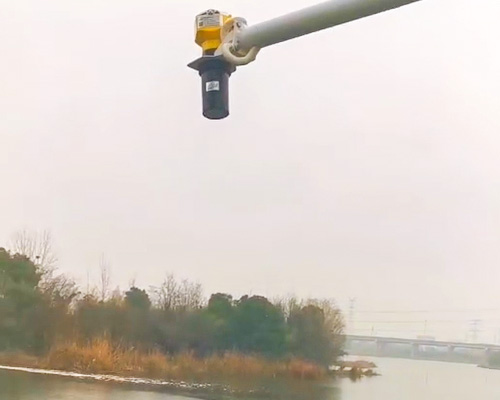

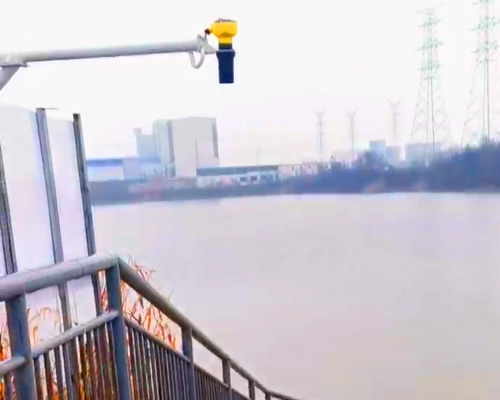

　　  Integrated ultrasonic level gauge used in Wuhan, Hubei Province, installed in a tributary channel connected to the Yangtze River to compare water levels. When the Yangtze River level is low, water is discharged into the Yangtze River basin.

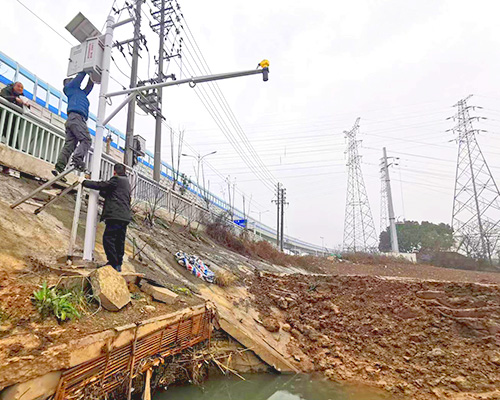

　　The customer on site reported that the instrument data was fluctuating. After Dayu Electronics technicians arrived, they found that all on-site instruments had a 20-meter range. The mounting bracket was too short during installation, causing the gauge to detect obstacles on the riverbank. After extending the bracket on site, the data became stable.

　　If the installation height does not exceed 10 meters, it is recommended to select the range based on the actual usage, so that a long bracket is not required.
