Dayu Ultrasonic Clamp-On Pipe Flow Meter Applied at an Aquaculture Site

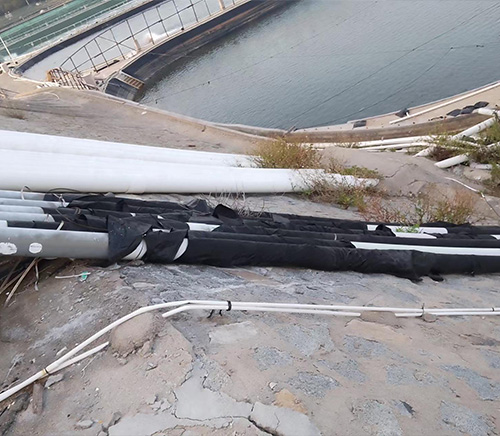

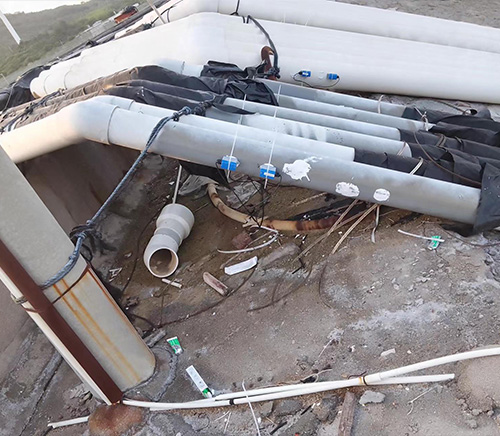

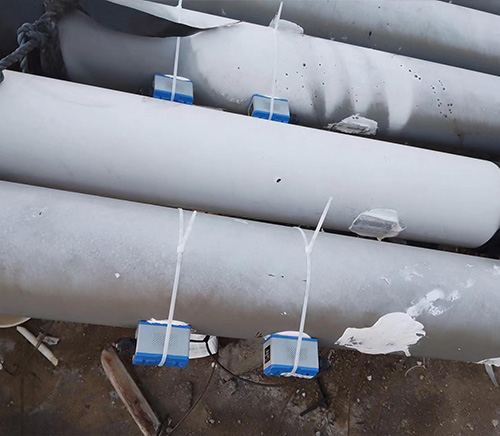

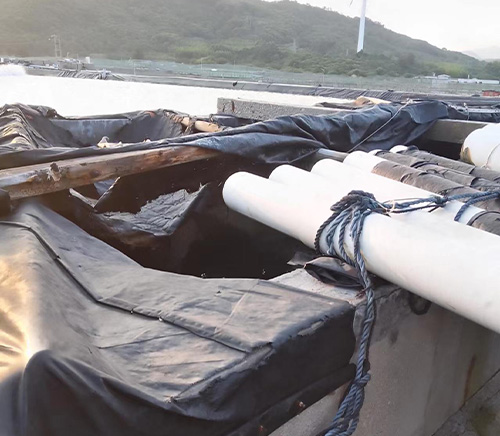

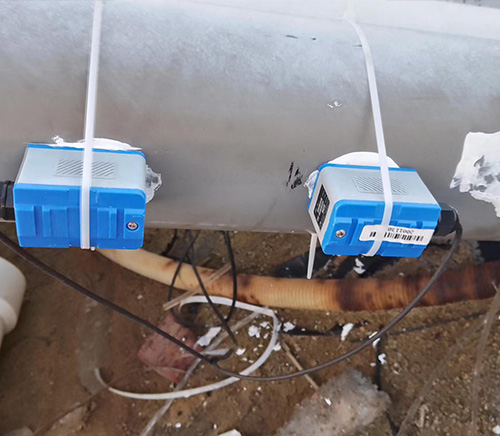

Ultrasonic Clamp-On Pipe Flow Meter applied at an aquaculture site in Zhao'an County, Zhangzhou City. When the pump starts, it calculates how much seawater flows into the pipe for aquaculture, with a 24-hour cycle.
The clamp-on ultrasonic flow meter series measures the flow rate of liquids in full pipes. It is available in flameproof and intrinsically safe combined types, with explosion-proof rating Exd[ib]ⅡBT6, and can be equipped with an optional intrinsically safe remote control with explosion-proof rating ExibⅡBT6. Measurable media include: drinking water, river water, seawater, groundwater, cooling water, high-temperature water, sewage, lubricating oil, diesel, fuel oil, chemical liquids, and other homogeneous fluids.
Advantages of the Clamp-On Ultrasonic Flow Meter
(1) The clamp-on ultrasonic flow meter is portable, easy to operate, and provides intuitive data readouts, with the ability to store and recall measured data.
(2) It can measure a wide range of liquids, including water, seawater, slurry, oil, acids, alkalis, and other homogeneous liquids.
(3) Non-contact measurement, lightweight, and compact.
(4) The installation of the clamp-on ultrasonic flow meter's transducers is simple, and different transducer sizes can accommodate different pipe diameters. While maintaining accuracy, the clamp-on ultrasonic flow meter can measure pipes as small as DN15 and as large as DN3000 or more.
(5) During flow measurement, the clamp-on ultrasonic flow meter requires no pipe modification; the transducers simply attach to the straight pipe section, causing no pressure loss, and can be installed on existing pipes for flow measurement.
(6) Suitable for measuring pipes made of various materials, such as metal pipes (stainless steel, carbon steel, cast iron, etc.), plastic pipes, and other pipes with good sound transmission properties.
