Dayu Electronics Ultrasonic Level Meter Used for Trash Bin Level Detection

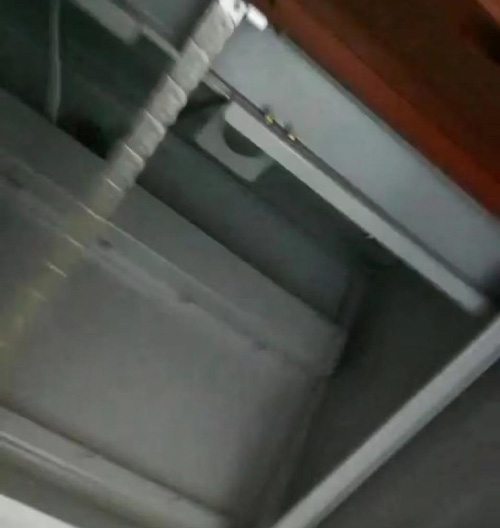

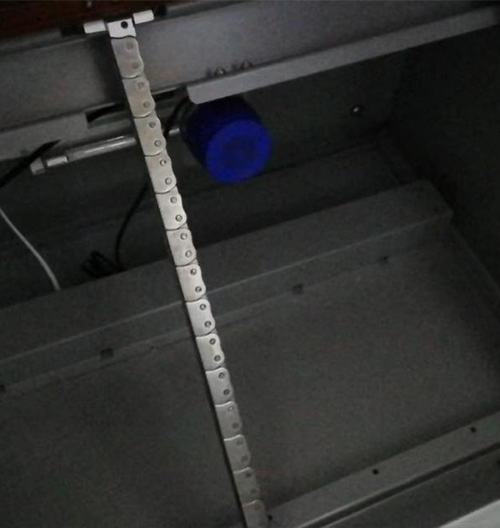

The ultrasonic level meter above the trash bin detects the height of the waste level.
The ultrasonic proximity switch sensor uses the principle of ultrasonic ranging to detect objects. The ultrasonic signal is emitted by the ultrasonic probe, reflected by liquid or solid media, and received by the same probe (self-transmitting and self-receiving). The time difference between transmission and reception is measured to achieve level measurement.
The relationship between sound wave transmission distance, sound speed v, and transmission time t can be expressed as:
Formula for ultrasonic distance value
L: Distance from the ultrasonic probe to the measured object. Unit: m;
v: Sound speed after temperature compensation. Unit: m/s;
t: Operating time of the sound wave within the measurement range. Unit: s
KG_02 Ultrasonic Proximity Switch Sensor
Power Supply Range:
Operating current: 12VDC, ≤40mA ; 24VDC, ≤25mA
Standby current: 12VDC, 14mA±0.2mA ; 24VDC, 8mA±0.2mA
Output Characteristics
RS485/Modbus-RTU standard protocol
Measurement Performance
Measurement range: 3.5m
Blind zone: 25cm
Resolution: 1mm
Measurement accuracy: 0.5%
Distance response speed: 1s
Temperature response speed: 1s
Transducer Characteristics
Frequency: 65KHz
Beam angle:
Physical Characteristics
Material: ABS
Weight: (excluding cable)
Protection class: IP65
Cable: 6-core shielded cable, standard length 0.5 m (customizable)
Operating Environment
Ambient temperature: -20~60℃
Storage temperature: -40~85℃
Operating pressure: standard atmospheric pressure
