Dayu Electronicsultrasonic level meter bottom thread installation instructions:
Installing on tanks, pools, cover plates, and brackets is basically the same as the methods described above. Route the transducer cable through a protective conduit to effectively prevent the cable jacket from aging.
After installation, the transducer face must protrude beyond the cover plate or the waveguide tube. It must not be recessed inside the cover plate or waveguide tube.

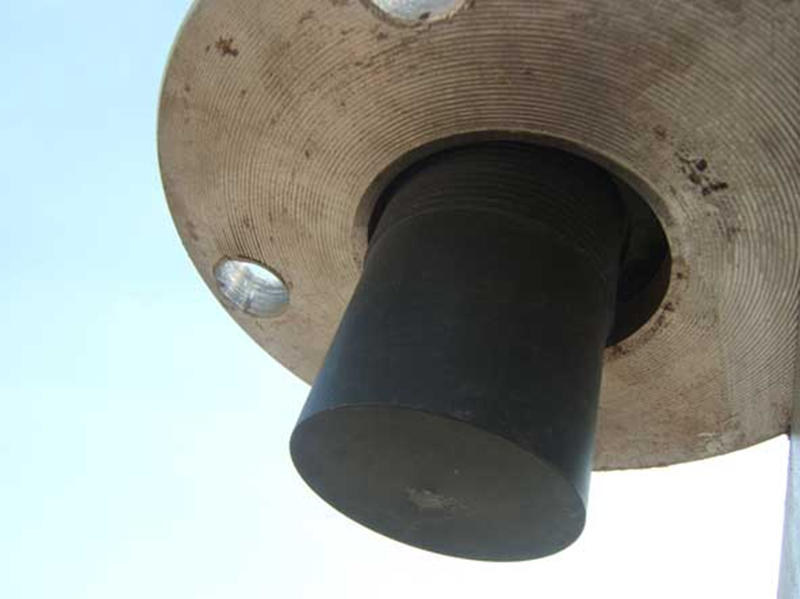

Figure 5: View from the bottom of the flange

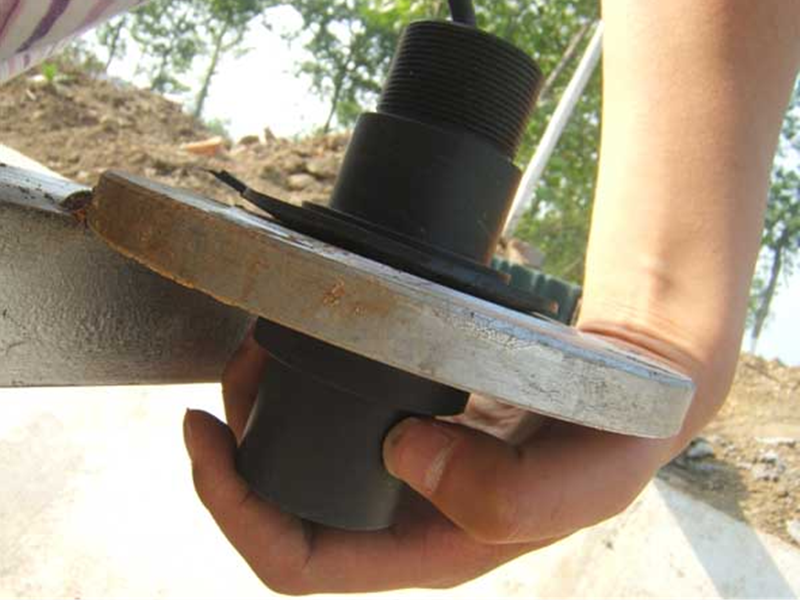

Figure 6: Place a gasket with the same inner diameter under the flange

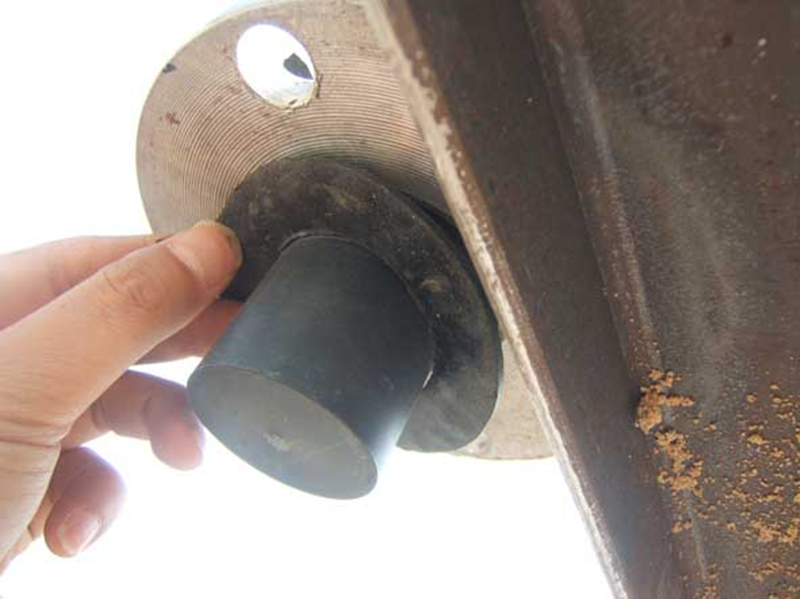

Figure 7: Tighten the nuts to secure the transducer

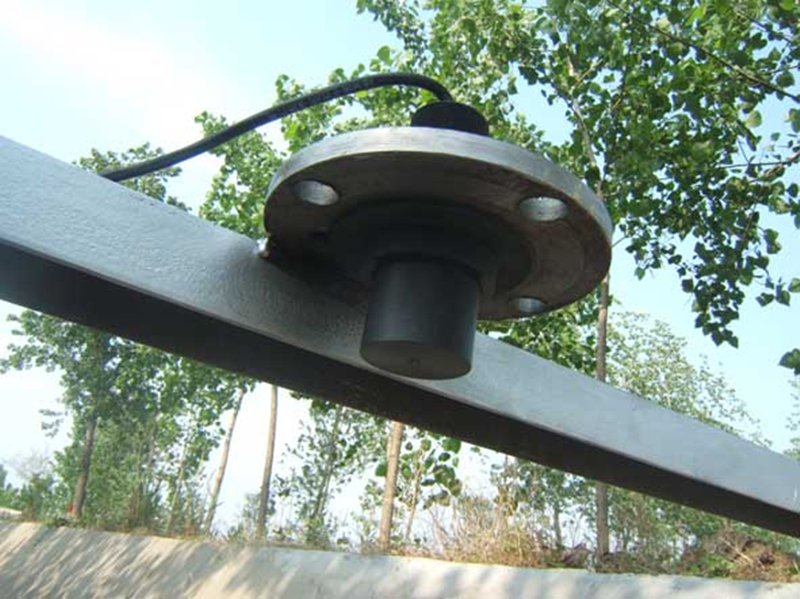

Figure 8: Installed transducer
