Application of Dayu Electronic Ultrasonic Doppler Flowmeter in Reservoir

Longyan Huanggang Reservoir uses Dayu Electronic Ultrasonic Doppler Flowmeter to measure the instantaneous flow rate of the reservoir. After a period of time, the customer reported that the flow velocity could not be measured, and the previously installed conduit was not securely fixed, causing it to be washed away by water, and the flowmeter cable was also broken.

On May 6, 2019, Dayu Electronic technical personnel arrived at the installation site of the Doppler flowmeter at Huanggang Reservoir and found that the flowmeter had been washed away and was no longer usable. The solution was to reinstall a new flowmeter, and the bracket and installation points were also redone.

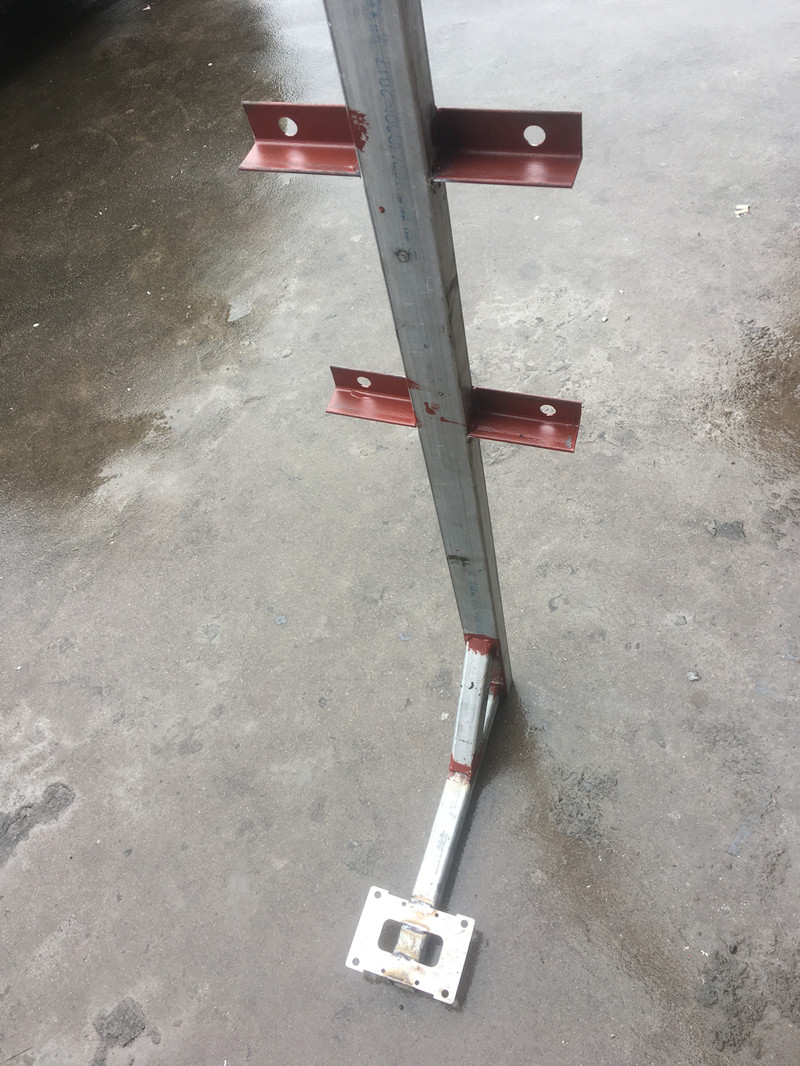

Figure 1: Customized mounting bracket

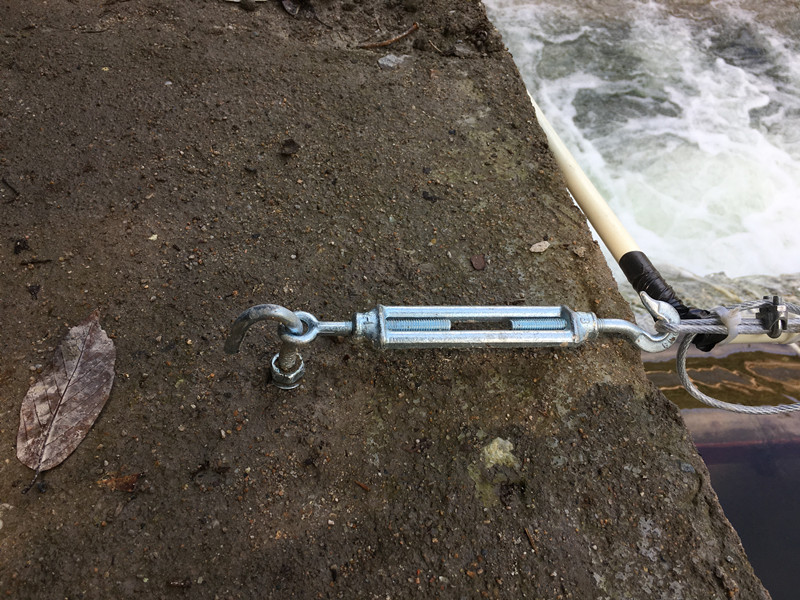

Figure 2: Confirmed new installation points

Figure 3: Installed Doppler flowmeter
