Ultrasonic Doppler Flowmeter: Enabling Precise Drainage Monitoring at Water Parks and Safeguarding Urban River Ecological Balance
In the scorching summer heat, water parks experience peak visitor flow. Behind the laughter and joy, the daily discharge of hundreds of tons of pool water has become a new focus of environmental supervision. With the advancement of eco-city construction, water authorities across regions have clearly required that water park water replacement discharges must be included in real-time flow monitoring to prevent ecological flow imbalance in inland rivers. How can water parks achieve efficient, accurate, and low-cost flow measurement while meeting regulatory requirements? The ultrasonic Doppler flowmeter launched by Dayu Electronics is a reliable solution tailored specifically for this scenario.
Why do water parks need to monitor drainage flow?
Water parks consume a large amount of water resources daily, making water replacement operations inevitable. When treated discharge water flows into urban inland rivers, excessive instantaneous flow or abnormal total volume can disrupt the existing ecological balance of the river channel—causing drastic water level fluctuations, scouring of the riverbed, and affecting aquatic habitats. Therefore, environmental protection and water conservancy authorities generally require operators to install flow monitoring equipment and provide continuous, traceable discharge data. This is not only fulfilling corporate environmental responsibility but also a key measure to avoid compliance risks.
Limitations of traditional monitoring methods
In the past, some parks used weir tank methods or mechanical flowmeters for measurement. These methods often require interrupting water flow and constructing auxiliary structures, leading to long construction periods and affecting normal operations. More critically, discharge water may contain small amounts of impurities or air bubbles, which can easily cause rotor jamming, ultrasonic signal attenuation, resulting in data drift or even equipment failure.

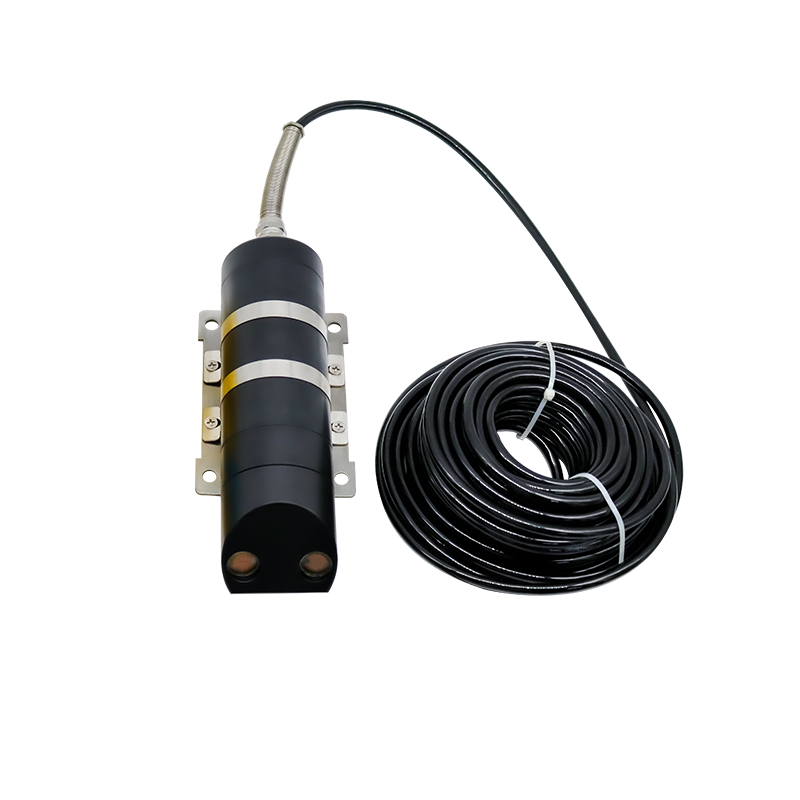

The ultrasonic Doppler flowmeter independently developed by Dayu Electronics employs advanced Doppler shift principles: the transducer emits ultrasonic pulses into the water, which reflect off suspended fine particles or bubbles in the water. By detecting the frequency change of the returned echo, the flow velocity can be precisely calculated. Combined with a built-in pressure-type water level sensor, the cross-sectional flow area is obtained in real time, ultimately outputting instantaneous flow rate and cumulative flow.
Key advantages at a glance:
No shut-off installation: The sensor is directly fixed at the bottom of the discharge pipe or open channel, requiring no water stoppage or modifications, and does not affect normal park operations.
Adaptability to harsh water conditions: It maintains stable measurement even in low-turbidity water or water containing minor impurities or bubbles, with strong anti-interference capability.
Real-time online monitoring: Data can be transmitted wirelessly to a monitoring platform, meeting environmental authorities' requirements for continuous ecological flow data.
Low power consumption and maintenance: The entire device consumes only microwatts of power, allowing battery operation for several months, significantly reducing the cost of external power supply in the field.
Providing credible evidence for ecological flow balance
By deploying the ultrasonic Doppler flowmeter at water park discharge outlets, regulatory authorities and operators can clearly grasp the total discharge volume and instantaneous variation trends of each stage through the backend system. When the discharge volume approaches the ecological flow threshold, the system automatically sends alerts, reminding staff to adjust water replacement plans and avoid impacting urban inland rivers. This is not only technical compliance but also proactive stewardship of the urban water environment.
Choose Dayu Electronics to make monitoring simpler
Our ultrasonic Doppler flowmeters have been successfully applied in dozens of water parks, scenic area artificial lakes, and municipal discharge outlets, delivering stable performance and reliable data. If you also face compliance requirements for discharge monitoring, feel free to contact us for a customized solution—our professional team will provide installation guidance and after-sales support throughout the entire process, making ecological flow management easy and efficient.
Protecting the vitality of every inland river starts with precise monitoring.
