Dayu Electronics: Application of Clamp-On Level Sensors in Non-Full Pipe Flow Monitoring

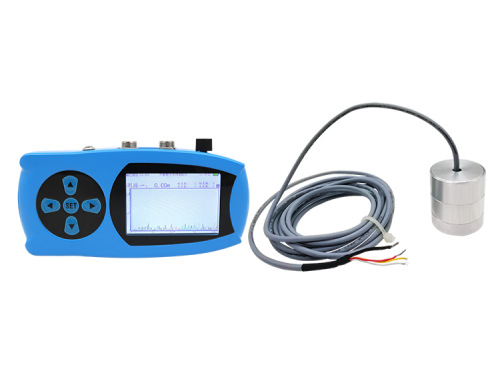

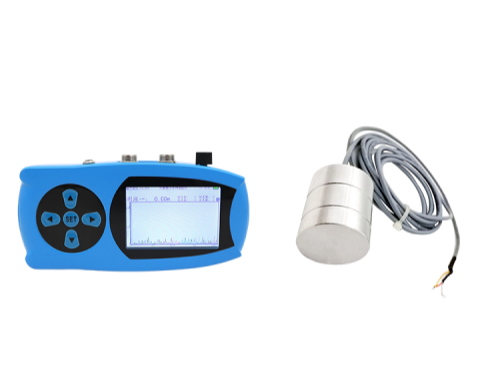

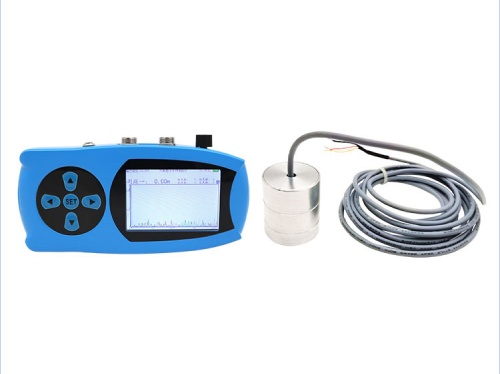

In the field of industrial process monitoring and metering, level measurement in non-full pipe electromagnetic flowmeters is a core step to ensure accurate flow data and achieve refined management. However, traditional invasive level measurement methods may face challenges such as medium corrosion, pipeline pressure, inconvenient installation, and contamination risks. TheM33 clamp-on level sensor launched by Dayu Electronics, with its unique non-contact measurement principle, provides a highly reliable and convenient innovative solution for this application scenario.

The core advantage of the M33 clamp-on level sensor lies in its completely non-invasive nature. It does not require drilling holes in the pipe or tank, nor does it need to directly contact the measured liquid. Simply by attaching the sensor tightly to the outer wall of the pipe, it can accurately detect the internal liquid level through advanced acoustic or vibration wave analysis technology. This approach fundamentally eliminates issues such as leakage, corrosion, and clogging that may occur when sensors come into contact with the medium. It is especially suitable for demanding conditions that require high hygiene standards, involve corrosive or toxic media, or where shutdown and drilling for installation are not permitted. This greatly enhances the long-term operational safety and maintenance convenience of the system.

Regarding the question users often ask—"Can it measure the level of a non-full pipe electromagnetic flowmeter?"—the answer is yes. The M33 clamp-on level sensor is fully applicable to such scenarios and can effectively provide the level parameter required for flow calculation, helping achieve more accurate volumetric flow measurement. However, in practical applications, to ensure optimal measurement performance, the following two professional considerations should be carefully addressed:

1. Pipe pressure resistance and sensor compatibility: The sensor detects the internal state through the pipe wall, so pipe wall thickness, material, and internal pressure (pressure resistance conditions) are important selection factors. It is essential to ensure that the signal can effectively penetrate and remain stable under the working pressure of the pipe. Providing accurate pipe information before selection is crucial.

2. Understanding and planning for the measurement blind zone: Any precision measurement has physical boundaries. For the M33 sensor, there is an inherent near-end blind zone with a minimum value of approximately 3 centimeters. This means that level changes within about 3 centimeters below the sensor installation point cannot be effectively distinguished. During actual installation, this blind zone must be reserved outside the desired level measurement range, or it should be considered as a fixed safety margin and compensated accordingly, to ensure continuity and accuracy within the main measuring range.

Dayu Electronics not only provides high-performance M33 clamp-on level sensors but also emphasizes targeted application support for customers. We recommend that when applying this sensor in key metering applications such as electromagnetic flowmeters, comprehensive consideration should be given to pipe conditions, medium characteristics, level variation range, and the blind zone effect, with scientific installation position design and system integration. Our technical team can provide professional selection and installation guidance to ensure the sensor's performance is fully realized.

Choosing Dayu Electronics means choosing a safer and smarter liquid level measurement solution, helping you precisely control the level information of every process with impeccable reliability.
