Non-Invasive, Precise Monitoring of Transformer Oil Conservator Level: A Technical Solution [Dayu Electronics]

　　Oil conservator level is a critical indicator for the safe operation of oil-immersed transformers. Traditional level monitoring often relies on intrusive installation, float switches, or glass tube indicators, which pose risks of seal damage, leakage, oil contamination, insufficient accuracy, and maintenance hazards. By employing an externally mounted, non-contact transformer oil conservator level gauge, continuous, precise, and stable level monitoring can be achieved without compromising the tank structure, without shutdown, and without drilling—meeting the safety and intelligent maintenance requirements of power equipment.

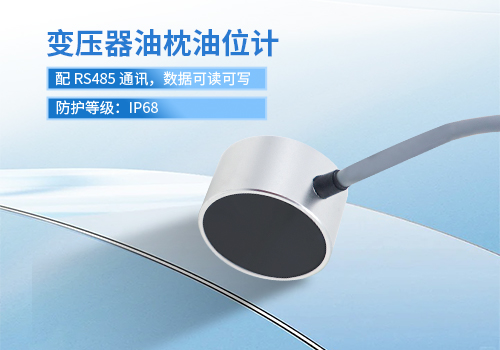

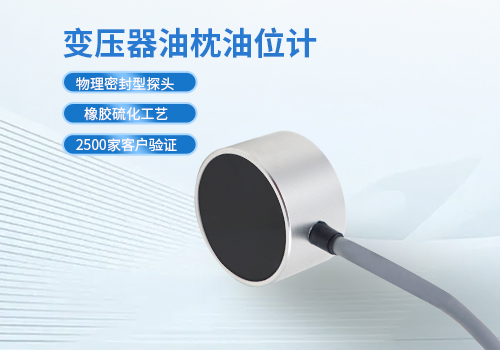

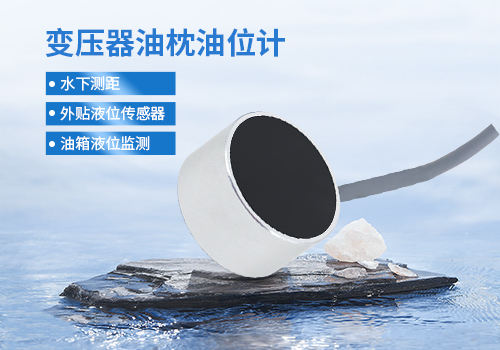

　　This solution centers on the externally mounted ranging capability of the transformer oil conservator level gauge. The sensor is installed at the bottom of the outer wall of the conservator, emitting sound waves that penetrate the shell. The echo reflected from the oil-air interface is used to calculate the liquid level height via the time-of-flight method. Throughout the process, there is no contact with the insulating oil, no modification to the equipment structure, and no impact on sealing or pressure resistance—eliminating risks of leakage, sparks, and medium contamination from the source. Combined with temperature compensation and intelligent echo algorithms, it filters out wall interference and operational fluctuations, achieving millimeter-level accuracy and stable response. It is compatible with mainstream structures such as metal bellows conservators and sealed oil conservators.

　　The transformer oil conservator level gauge features easy installation, maintenance-free operation, and high reliability: it uses magnetic or adhesive mounting, requiring no welding or power outage for rapid on-site deployment; it has no moving mechanical parts, is unaffected by oil aging or impurities, and offers strong long-term stability; it can display locally or transmit remotely via digital interfaces to connect with station-level monitoring platforms, enabling real-time level monitoring, alarm on limit violations, and trend analysis.

　　Compared with intrusive drilling-based solutions, the transformer oil conservator level gauge offers significant advantages in safety, integrity, and economy: it does not damage the tank body, does not reduce equipment lifespan, and lowers maintenance costs; it provides continuous and reliable data, replacing manual inspections and reducing risks associated with working at heights or near live parts.

　　In transformer maintenance, precise level monitoring is a key step in preventing oil shortage, overheating, and insulation failure. Non-invasive, non-contact, and high-precision transformer oil conservator level monitoring balances equipment safety, measurement accuracy, and maintenance efficiency, providing reliable support for the condition awareness of oil-immersed transformers and adapting to the reliable operation demands of smart substations and power grids.
