Ultrasonic Flue Gas Flow Meter: Innovative Technology Ushers in a New Chapter in Flue Gas Flow Measurement [Dayu Electronics]
In the fields of industrial flue gas emission monitoring and environmental protection, the accuracy and stability of flue gas flow measurement directly affect emission accounting, process optimization, and environmental compliance. The ultrasonic flue gas flow meter leverages core innovations in non-contact measurement and resistance to harsh operating conditions to break through traditional measurement technology bottlenecks, leading flue gas flow measurement into an efficient and reliable new stage with an advanced technical architecture.

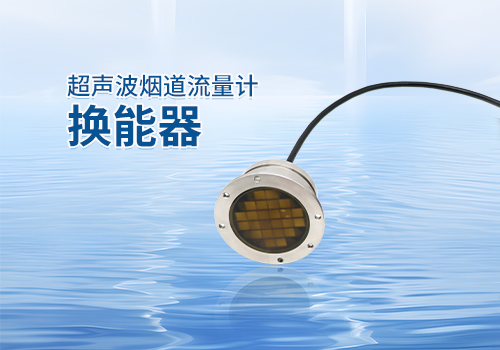

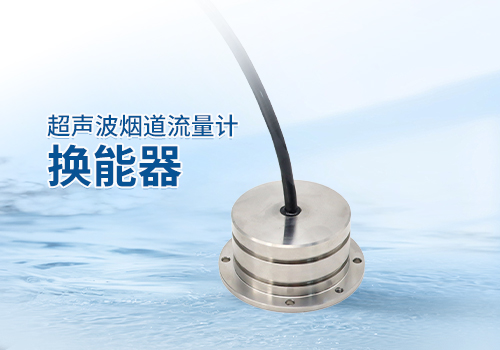

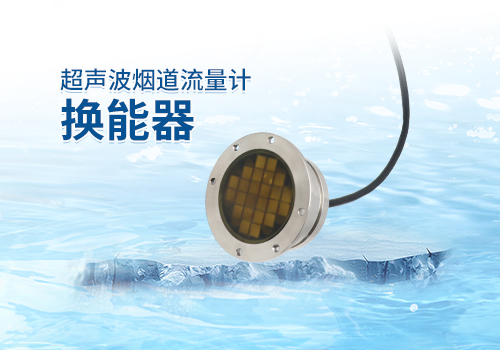

The core innovation of this device lies in the deep integration of non-contact measurement principles and acoustic wave propagation technology. Based on the transit-time method or the Doppler effect, the sensor transmits and receives signals through ultrasonic transducers installed on the outer wall of the flue duct, without needing to be inserted inside, avoiding the wear and blockage issues faced by traditional contact instruments such as pitot tubes and orifice plates. Innovative signal processing algorithms precisely capture the transit time or frequency shift of acoustic waves in the flue gas, and combined with a flue cross-section velocity distribution model, achieve accurate calculation of flue gas flow with measurement accuracy up to ±1.5% FS, suitable for flue ducts of various cross-section shapes and diameters.
The technical breakthrough in resistance to harsh operating conditions is a key advantage. Industrial flue gas is characterized by high temperature, high humidity, high dust content, and strong corrosiveness. The ultrasonic flue gas flow meter uses high-temperature-resistant and corrosion-resistant transducer materials, combined with dustproof and moisture-proof packaging technology, to operate within a working temperature range of -40°C to 200°C, resisting erosion from dust, sulfides, and other media in the flue gas. Additionally, the device features dynamic noise suppression that filters out interference signals such as flue vibration and fan noise, ensuring stable data output even under complex conditions.
The innovative upgrades in intelligence and adaptability broaden the application boundaries. The device integrates temperature and pressure compensation modules that automatically correct the impact of flue gas density changes on measurement results, meeting flow conversion requirements under various conditions. It supports wireless communication protocols such as 4G and LoRa, enabling seamless integration with environmental monitoring platforms and industrial control systems for real-time data transmission, remote monitoring, and historical data traceability. Furthermore, its modular design simplifies installation and maintenance, allowing calibration and inspection without interrupting production, significantly reducing operational and maintenance costs.
Against the backdrop of increasingly stringent environmental regulations, ultrasonic flue gas flow meters have been widely applied to flue gas flow monitoring in industries such as power, steel, chemical, and cement. The innovative technology not only solves the pain points of low measurement accuracy and frequent maintenance of traditional instruments in harsh flue environments, but also provides reliable emission data support for enterprises, facilitating environmental compliance and energy conservation. As an innovative benchmark in flue gas flow measurement, this device is driving the precision and intelligence of industrial flue gas monitoring through its technological advantages.
