Analysis of Effective Detection Range of Hydrophones for Monitoring Pipeline Leaks [Dayu Electronics]
Hydrophone, as a pipeline leak monitoring device based on acoustic principles, has an effective detection range influenced by multiple factors such as pipe material, leak acoustic characteristics, and environmental noise. Based on actual application cases and technical parameter analysis, its typical monitoring range is 300 to 1000 meters, with specific performance requiring comprehensive evaluation based on scenario conditions.
1. Acoustic wave propagation characteristics determine basic monitoring capability

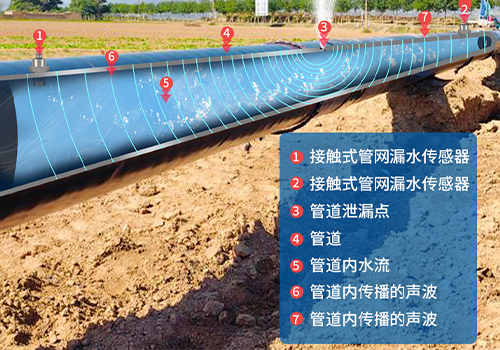

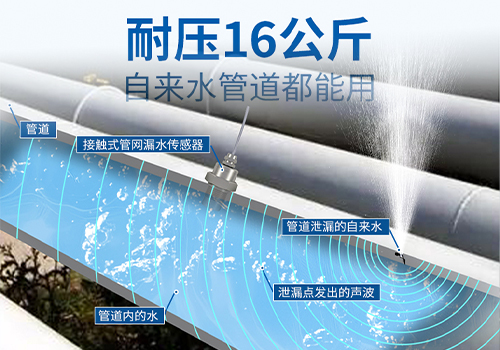

The sound waves generated by pipeline leaks propagate as spherical waves, with sound pressure levels attenuating exponentially with distance. Experimental data show that in steel pipes, the propagation radius of leak acoustic waves can reach 60 meters with high sound identification; in plastic pipes, due to greater material damping, the propagation radius typically shortens to a few meters. Hydrophones capture infrasound to low-frequency acoustic waves (20Hz–2.5kHz) generated at the leak point, covering the full lifecycle frequency band of leak characteristics and ensuring complete monitoring from micro-leaks to ruptures.
2. Technical parameters optimize long-distance monitoring performance

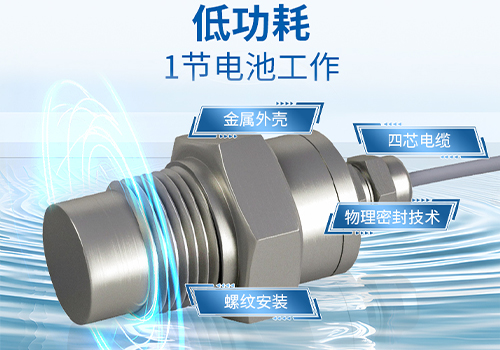

Modern hydrophones adopt piezoelectric ceramic or fiber optic sensing technology, with a frequency response range covering 10Hz–10kHz and sampling rates above 100kHz. Combined with time difference of arrival (TDOA) positioning algorithms, they can achieve centimeter-level positioning accuracy with hydrophone spacings of 5–10 meters. For example, a certain model of equipment uses dual probes to synchronously collect acoustic signals and uses cross-correlation algorithms to eliminate environmental noise, controlling positioning errors within ±0.1 meters over a 300-meter monitoring range.
3. Environmental adaptability expands application boundaries
Hydrophones with an IP68 protection rating can withstand extreme temperatures from -40°C to 120°C and static pressures up to 100 bar, making them suitable for complex scenarios such as deep sea, deserts, and plateaus. In water supply pipeline monitoring, the equipment can be deployed without excavation via magnetic mounting, with a single charge lasting over 2 years. It supports LoRa/NB-IoT low-power transmission, ensuring stable long-distance data backhaul. In actual engineering, this technology has achieved continuous monitoring over a 1000-meter range for large-diameter pipelines, with a false alarm rate below 0.5%.
