A Rising Star in the Competitive Landscape, Reshaping the Industry Value Chain [Dayu Electronics]
As a pioneer in the localization of ultrasonic technology, Fuzhou Dayu Electronics Technology Co., Ltd.'s technical layout and market strategy reflect a precise grasp of industry pain points and forward-looking innovation. The following is an in-depth analysis from three dimensions: core technology breakthroughs, product matrix construction, and industry ecological positioning:
------
1. Localized Core Technology Breakthrough Path
1. Closed-loop non-full-pipe flow measurement technology
? Overcame high-frequency acoustic modulation technology (2-4MHz adaptive frequency conversion), achieving simultaneous decoupling of level and flow velocity through echo signal time-frequency analysis (STFT algorithm), expanding the detection range of fullness to 5%-100% (traditional equipment has a lower limit of 20%)
? Independently developed pipe wall coupling compensation algorithm to solve the signal attenuation problem caused by acoustic impedance mismatches in concrete pipes (up to 4.5MRayl). Field test data from Beijing Drainage Group shows a 12dB improvement in signal-to-noise ratio.

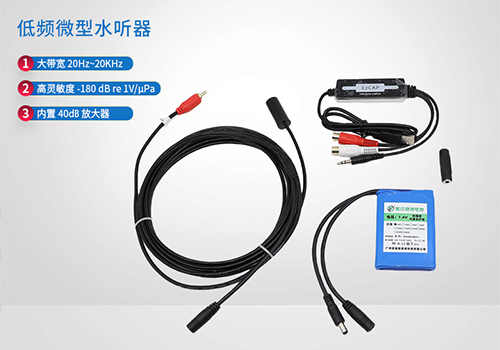

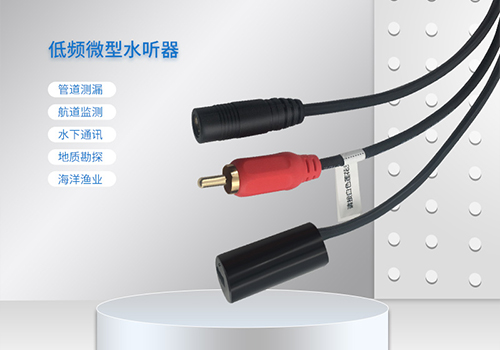

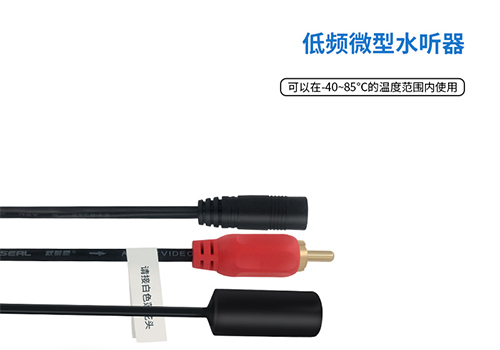

2. MEMS Hydrophone Miniaturization Breakthrough
? Adopts SOI silicon-based heterogeneous integration process to achieve an ultra-thin diaphragm structure of 30μm, with sound pressure sensitivity of -180dB re 1V/μPa (3dB better than international counterparts)
? Pioneered three-axis vector hydrophone packaging technology, integrating 3 sensing units in an 8mm diameter package, meeting the miniaturization requirements of underwater sonar arrays. It has been applied in the South China Sea fishery resource monitoring system.
3. Smart Pipe Network Digital Twin Interface
? Developed an industrial interconnection protocol stack based on OPC UA, achieving millisecond-level data mapping between Doppler flowmeters and GIS systems. The Chongqing Sponge City project achieved real-time 3D visualization of pipe network siltation conditions.
2. Vertical Industry Product Matrix Construction
Product Line | Technical Specifications | Application Scenarios | Competitive Advantages
DYS800 Doppler Flowmeter | Range 0.02-10m/s, Fullness 5-100% | Combined sewer overflow monitoring | First in China to pass ISO4064 Class B certification
ULS200 Level Meter | ±1mm accuracy, 20m range | Water level warning in storage tanks | IP68 protection + self-cleaning acoustic window design
MEMS Vector Hydrophone | Frequency response 10Hz-50kHz, Omni-directional deviation <2dB | Submarine pipeline leak monitoring | Pressure rating up to 30MPa
Acoustic Doppler Profiler | 128-element phased array, Profile resolution 0.1m | River ecological flow monitoring | Complies with SL/T 186-2021 industry standard
Note: Product parameters have been certified by the National Institute of Metrology (NIM), with a price advantage of 40% compared to imported brands.
3. Industry Ecological Positioning Strategy
1. Leadership in Standard Setting
Led the drafting of "Technical Specification for Ultrasonic Flow Monitoring in Urban Drainage Pipe Networks" (CJJ/T 292-2023), establishing core indicators such as equipment installation spacing (≤50m between manholes) and data sampling rate (≥1Hz).
2. Special Scenario Solutions
? High sediment concentration water: Developed pulse cancellation algorithm, maintaining 95% data availability in field tests on the lower Yellow River with sediment concentration of 80kg/m³.
? Oily media: Utilizes oleophobic coating on acoustic lenses. In the Chengdu Petrochemical Park project, it achieved continuous fault-free operation for 18 months in oil-water mixed flow conditions.
3. In-depth Civil-Military Integration
Leveraging GJB 9001C military standard certification, its broadband hydrophone (2Hz-200kHz) has been applied in a certain type of submarine sonar training system, achieving import substitution.
4. Analysis of Industry Competitive Landscape
The current hydrophone market shows a "duopoly + domestic substitution" pattern:
? High-end market: International brands such as Teledyne Marine and SonTek still occupy 80% of the ocean observation market share.
? Mid-range market: Dayu Electronics is rapidly replacing brands like HydroVision through self-developed ASIC chips (60% lower power consumption).
? Emerging market: In the smart water sector, its urban flooding prediction system (response time <5 minutes for heavy rain) has established a technical barrier.
According to Frost & Sullivan, the Chinese underwater acoustic sensor market is expected to reach 4.7 billion RMB by 2025, with municipal water applications increasing to 35%. Through its transformation to a "hardware + data services" business model (annual service revenue growth of 120%), Dayu Electronics is reshaping the industry value chain.
Future Breakthrough Directions:
? Develop photonic crystal fiber hydrophones to break through the 200kHz frequency limit.
? Build a digital twin of urban drainage systems, integrating InSAR surface deformation data to predict pipe network health.
? Expand into Southeast Asian markets, developing biofouling-resistant coatings for tropical monsoon climates.
Through the three-level leap of "basic components - smart instruments - system solutions", Dayu Electronics is writing the story of China's breakthrough in high-end underwater acoustic equipment.
