Ultrasonic Distance Sensor for Real-Time Monitoring of Bridge Foundation Pile Scour Changes [Dayu Electronics]
Bridges, as a vital component of China's transportation infrastructure, are of critical importance in terms of safety. In bridge construction, the stability of bridge foundation piles directly affects the safety of the entire bridge. How to monitor scour changes in bridge foundation piles in real time and ensure the safe operation of bridges has become a focus of attention for owners and construction enterprises alike. Today, we bring you a professional tool for measuring scour changes in bridge foundation piles—the ultrasonic distance sensor.
Solution Design
Monitoring points: Based on the distribution of bridge foundation piles, a total of 6 monitoring points have been set up to cover key sections of the piles.

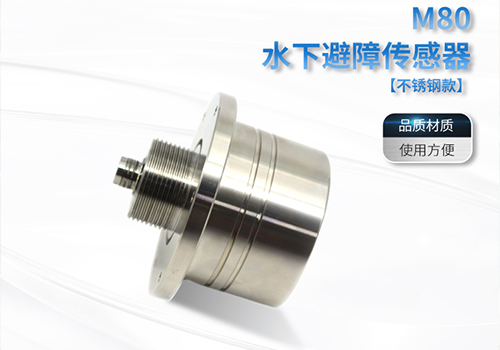

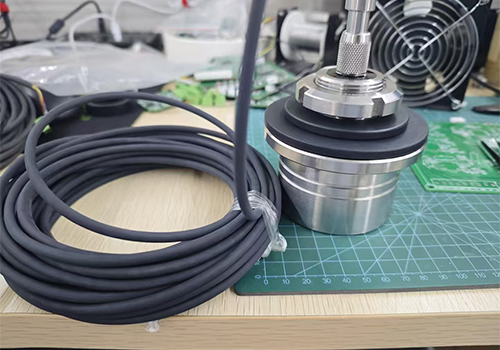

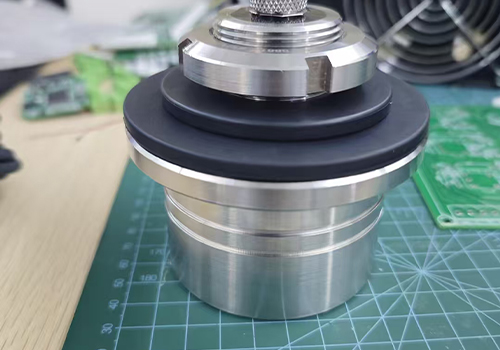

Equipment selection: Our ultrasonic distance sensor is selected for this application, featuring high accuracy, strong anti-interference capability, and easy installation.
Data transmission: Monitoring data is transmitted wirelessly and uploaded in real time to the bridge safety monitoring platform.
Implementation Process
Equipment installation: The ultrasonic distance sensor is installed at the predetermined positions on the bridge foundation piles, ensuring close contact between the sensor and the pile body to guarantee measurement accuracy.
Debugging and calibration: After installation, the sensor is debugged and calibrated to ensure normal operation.
Data monitoring: The sensor begins operation, monitoring scour changes in bridge foundation piles in real time and uploading data to the monitoring platform.
Application Results
Real-time monitoring: With the ultrasonic distance sensor, project owners can monitor the scour depth of bridge foundation piles in real time, providing a scientific basis for bridge maintenance.
Safety assurance: Through analysis of monitoring data, project owners gain a more comprehensive understanding of the stability of bridge foundation piles, providing strong support for the safe operation of the bridge.
Cost-effectiveness: Compared with traditional monitoring methods, the ultrasonic distance sensor offers advantages such as easy installation and low maintenance costs, saving significant manpower and resources for the project.
