Underwater Concrete Plane Depth Measurement: M80 Echo Sounder Horizontal Installation and Sequential Transmission Application [Dayu Electronics]
In underwater concrete construction or structural inspection, accurately obtaining depth data of the concrete plane is often the most troublesome issue on site. Using single-point measurement is not only inefficient but also prone to missing locally uneven areas. The Dayu Electronics M80 echo sounder, with its flexible installation methods and sequential transmission function, provides an efficient and reliable solution for this scenario.
Horizontal installation + sequential transmission - what does it mean?

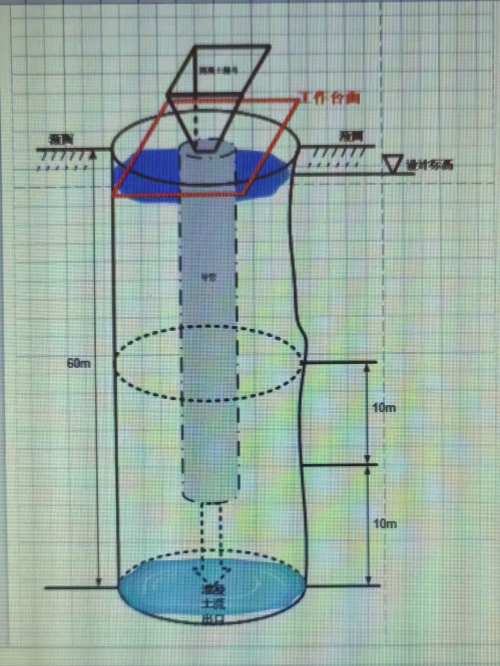

The customer wishes to install the M80 echo sounder horizontally and use multiple transducers in sequential transmission to measure the depth of the underwater concrete plane. Specifically: the echo sounder transducers are fixed horizontally at designated positions, and the system triggers each transducer sequentially according to a set timing sequence. The acoustic waves travel vertically or obliquely to the concrete plane and reflect back. By calculating the echo time, the precise depth is obtained.
The biggest advantage of this "sequential transmission" mode is that multiple transducers operate in time-division, avoiding interference with each other while covering a wider inspection area. Compared to repeatedly moving a single transducer, it saves time and provides real-time depth distribution of the entire plane.
Applicable scenarios and installation key points
The M80 echo sounder is particularly suitable for plane inspection after underwater concrete pouring, flatness assessment of caisson bottom slabs, and acceptance of underwater foundation works. For horizontal installation, it is recommended to fix the transducer on a sturdy bracket to ensure the acoustic wave transmission direction is perpendicular to the measured plane. Meanwhile, adjust the gain and threshold parameters appropriately based on the actual water depth and the reflection characteristics of the concrete surface to obtain stable and clear echo signals.
Why choose Dayu Electronics M80?
Sequential multi-transducer operation avoids cross-interference
High measurement accuracy and good repeatability
Simple operation interface and convenient on-site commissioning
Rugged waterproof design suitable for underwater working environments
If you are also looking for a reliable tool for underwater concrete plane measurement, feel free to contact us. The technical team at Dayu Electronics can provide tailored installation and parameter configuration support.
