Dayu Electronics: M36 Underwater Ranging Sensor Provides UUVs with Precision "Seafloor Views"

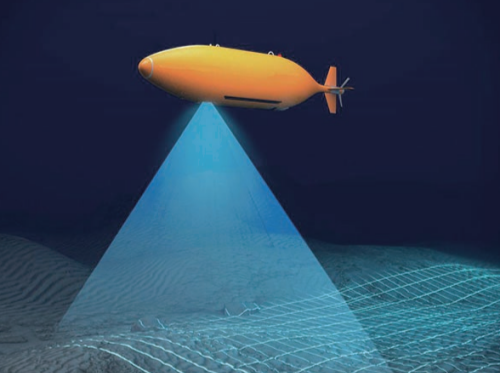

When UUVs (Unmanned Underwater Vehicles) perform seafloor terrain mapping, resource exploration, or pipeline inspection missions, precise depth measurement capability is central to their autonomous obstacle avoidance and path planning. Recently, in response to the integration needs of a specific UUV model, we successfully recommended and adapted the M36 underwater ranging sensor, adding another sharp blade to the underwater robot's "eyes."
This UUV project imposed extremely stringent requirements on the sensor: it had to operate stably at a maximum water depth of 50 meters, the output interface had to be the industrial standard RS485, and the size had to be strictly controlled to fit the UUV's compact cabin. Dayu Electronics' M36 sensor, with its miniaturized 36mm diameter design and IP68 pressure-resistant sealing, perfectly meets these requirements.
Why the M36? Because it hits the UUV's "requirement points" exactly.
First, the 50-meter range covers seamlessly. The M36 depth sensor offers multiple selectable range options, among which the 50-meter version is specifically tailored to the customer's specified maximum water depth—with just the right margin, neither excessive nor insufficient.
Second, the RS485 digital output connects effortlessly. The M36 uses a standard RS485 interface with the Modbus-RTU protocol, enabling stable communication directly with the UUV's main control system. The data has strong anti-interference capability, making it easy for secondary development and integration.
Third, it is small and lightweight, and installation does not take up space. The M36 features an integrated transducer design, making it ideal for platforms like UUVs with strict space and weight constraints, without worrying about affecting the vehicle's attitude or hydrodynamic performance.
Additionally, with an IP68 high-grade protection rating, it is durable for long-term underwater use. The M36 underwater depth sensor achieves an IP68 protection standard rated for 100 meters of water depth, with a fully sealed transducer design that allows stable operation when continuously submerged in fresh or seawater. It resists sediment and corrosion, providing reliable, hassle-free performance.
In terms of accuracy, the M36 has a blind zone of only 0.50 meters and an accuracy of ±0.5% of the maximum range. When a UUV approaches the seabed or performs shallow-water detection, there is no need to worry about the near-end "invisible" blind zone—the data is true and usable.
During actual installation, align the sensor's transmitting face vertically toward the seabed to ensure the strongest echo energy and most accurate measurement. Secure the sensor as far as possible from the propeller or other strong noise sources to reduce acoustic interference. For long-term use in seawater, it is recommended to periodically check the transducer surface for marine biofouling; a simple cleaning restores optimal performance.
Fuzhou Dayu Electronics is committed to providing highly reliable sensing solutions for the marine engineering and underwater robotics sectors. We welcome you to communicate with our technical team at any time—let's explore the infinite possibilities of the underwater world together!
