Dayu Electronics Borehole Quality Inspection Transducer KDYW-88K-200B

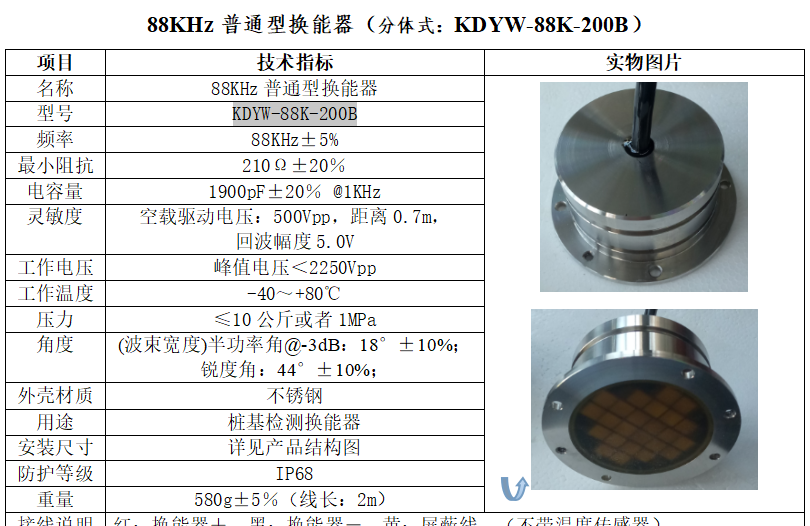

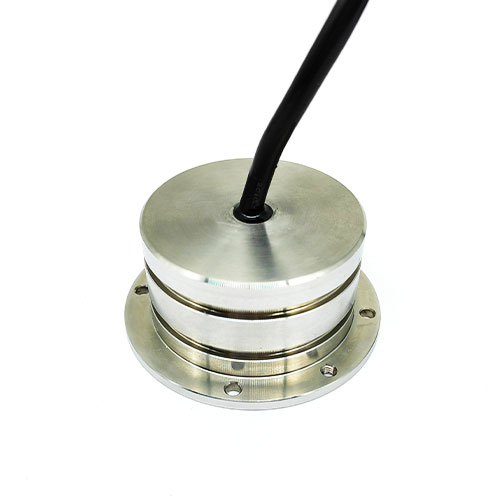

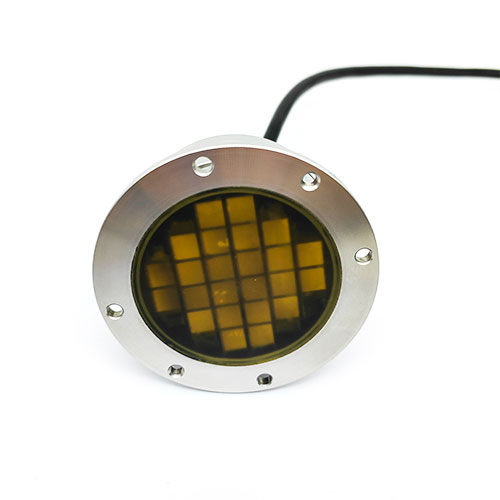

Borehole Quality Inspection Transducer KDYW-88K-200B
Borehole Quality Inspection Transducer
KDYW-88K-200B
The customer has now completed circuit verification,
and it can measure distance both in mud and in air.
Case 1:
Measurement method: Self-transmitting and self-receiving
Number of transducers: 1
Transmit voltage: 600V;
Pulses per transmission: 8-15;
Air distance measurement: minimum measurable distance of 2.2 meters.
Blind zone: within 0.30 meters.
Case 2:
Measurement method: One transmits, the other receives;
Number of transducers: 2
Transmit voltage: 600V;
Pulses per transmission: 8-15;
Air distance measurement: minimum measurable distance of 2.2 meters.
Blind zone: within 0.10 meters.
The pile foundation borehole inspection transducer is used during pile foundation borehole quality inspection to detect whether there are voids, cracks, or irregularities around the borehole during drilling operations, and to provide on-site monitoring and feedback. The borehole quality inspection transducer operates in water or mud and is primarily used for distance measurement. The detailed breakdown is as follows: finished products include borehole quality inspection instruments, ultrasonic borehole/slot inspection instruments, and cast-in-place bored piles; it detects borehole diameter, depth, verticality, collapse expansion positions, collapse constriction positions, and tilt orientation. For diaphragm wall trenches: trench width, depth, collapse expansion positions, collapse constriction positions, and tilt orientation detection. It also checks the effectiveness of branch piles, enlarged base piles, and enlarged diameter effects. It effectively prevents collapse accidents and facilitates engineers in adjusting construction plans.
