How Should Dayu Electronics' IP68 Ultrasonic Water Level Meter Be Installed?

Dayu ElectronicsHow should the IP68 ultrasonic water level meter be installed?

The mounting bracket for Dayu Electronics' IP68 ultrasonic water level meter needs to be fabricated based on the thread size and radiation radius.

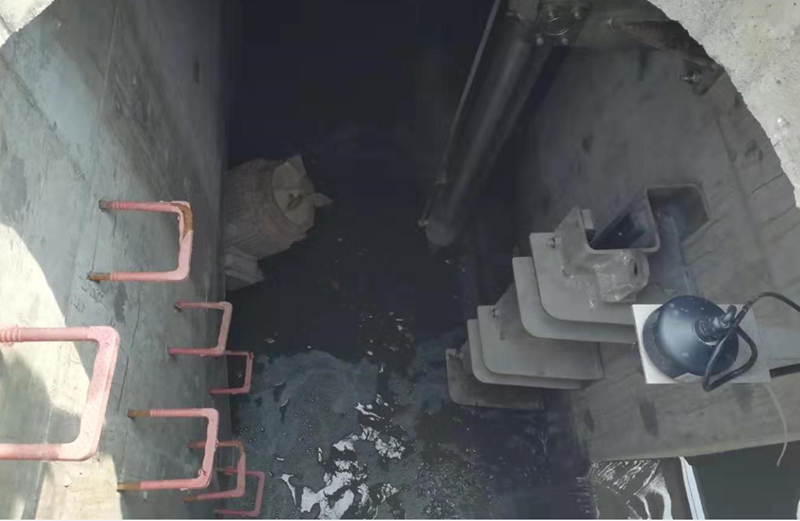

For example, in the following field scenario: the sensor has a range of 5 meters, a frequency of 64 kHz, a thread size of NPT 2", and an installation height of 4 meters, with an ultrasonic radiation radius of 0.5 meters. Therefore, the bracket length must be greater than 0.5 meters, and no obstacles should be present within a 0.5-meter radius centered on the ultrasonic sensor. The mounting hole diameter on the fixing plate should be around 60 mm.
