Why Is the Latest IP68 Ultrasonic Water Level Meter Taking the Market by Storm?

The use of ultrasonic products is becoming increasingly widespread, and ultrasonic water level meters are also one of the hot products with gradually increasing market demand. Product details are as follows:

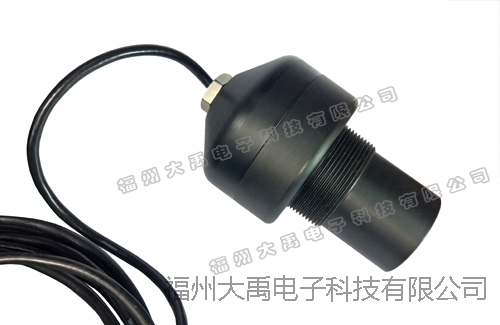

I. Product Introduction

Non-contact and wear-free detection of the target object is achieved using acoustic wave media.

The ultrasonic water level meter is mainly used to detect sewage, river water, and clean water, and can measure the distance from the sensor's emitting surface to the water surface.

The product's protection rating reaches IP68, allowing it to withstand long-term immersion at depths up to 10 meters underwater without damage. (Note: The cable outlet of the instrument must be properly sealed after on-site wiring to prevent water ingress.)

II. Measurement Principle

The ultrasonic pulse emitted by the ultrasonic probe travels through the air to the measured water surface, is reflected, and then returns to the probe through the air. Since both the transmission and reception times are known, the distance between the probe's emitting surface and the water surface is calculated as this time × speed of sound ÷ 2.

Calculation formula: D = C*t/2

(Divided by 2 because the sound wave travels from emission to reception as a round trip; D is distance, C is the speed of sound, and t is time).

If the time difference between emission and reception is 0.01 seconds and the speed of sound is 340 m/s.

340 m/s × 0.01 s = 3.40 meters

3.40 meters ÷ 2 = 1.70 meters

That is, the distance between the probe's emitting surface and the water surface is 1.70 meters.

III. Product Features

High protection rating: IP68.

Short response time

Address setting via RS485 communication

Rich output options: analog output or RS485, depending on the supply voltage.

IV. Main Technical Specifications

Measuring range: 1m, 2m, 3m, 4m, 5m, 6m, 7m, 8m;

Measurement output: Distance from the probe's emitting surface to the measured water surface;

Sensor thread: Varies depending on the measuring range;

Blind zone: Varies depending on the measuring range;

Supply voltage: DC 24V, output 1-channel 4-20mA or 1-channel RS485 MODBUS protocol;

Supply voltage: DC 12V, output 1-channel RS485 MODBUS protocol;

Display: None

Cable length included: 1m

Cable outlet: 4-core

Operating ambient temperature: -20 to +60°C;

Operating ambient pressure: 1 standard atmosphere;

Operating ambient humidity: ≤90% RH, non-condensing;
