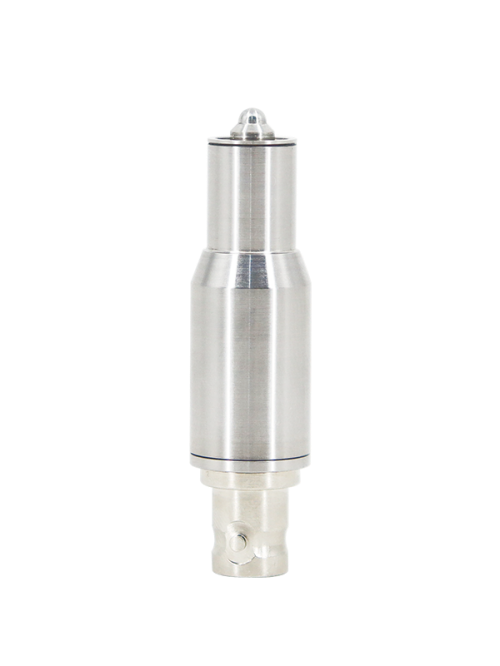

Shear Wave Transducer DYZ-50-01E [Dayu Electronics]
In modern building engineering and infrastructure maintenance, accurate assessment of the internal health of concrete structures is crucial. Hidden defects such as cracks, voids, and poor compaction directly threaten the safety and durability of key structural components like building foundations, columns, bridge piers, and tunnels. Traditional testing methods often have limitations, while ultrasonic non-destructive testing (NDT) technologies, especially shear wave testing, have become a trusted diagnostic tool in the industry due to their high sensitivity to subtle defects. The DYZ-50-01E shear wave transducer from Dayu Electronics is specifically designed as a core component for such demanding concrete internal defect detection applications.
The principle of ultrasonic concrete testing lies in the fact that when high-frequency sound waves propagate through a medium, parameters such as wave velocity, amplitude, and frequency change significantly due to internal discontinuities (e.g., cracks, voids). Compared with longitudinal waves, shear waves are more sensitive to defects perpendicular to the direction of propagation, especially excelling in detecting bond interface quality, inclined cracks, and small internal uncompacted areas, providing a critical data dimension for comprehensive assessment of concrete structural integrity. The DYZ-50-01E shear wave transducer is optimized based on this principle, with its frequency characteristics specially matched to ensure that the excited shear wave signal has good penetration depth and resolution, effectively detecting various defects ranging from surface crack depth to larger internal voids.
In practical applications, this transducer is mainly used for non-destructive testing and assessment of internal quality of building concrete foundations, load-bearing columns, large bridge piers, tunnel linings, and other structures. Through flexible measurement arrangements such as through-transmission, angled transmission, or surface transmission, combined with professional testing instruments, it can systematically scan the internal structure, locate defects, and assess their severity. To ensure effective signal coupling and stable transmission, a dedicated couplant is required to achieve close contact between the transducer and the concrete surface.
The DYZ-50-01E embodies Dayu Electronics' technical expertise in the field of industrial ultrasonic sensing. The product design emphasizes environmental adaptability and long-term reliability, meeting the stringent requirements of field testing. Its core value lies in providing engineering inspectors with a highly sensitive, highly reliable acoustic detection tool that "visualizes" hidden concrete internal quality issues, offering direct and scientific evidence for structural safety assessment, defect diagnosis, and maintenance/strengthening decisions. It is an important technical support for ensuring the long-term safe operation of major infrastructure.
