Dayu Electronics: The Multifaceted Role of DYW-LS-03A in Flow Velocity Measurement

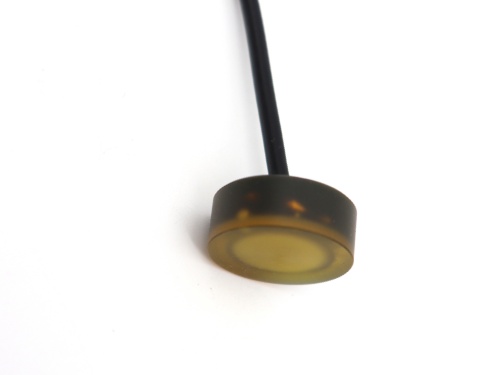

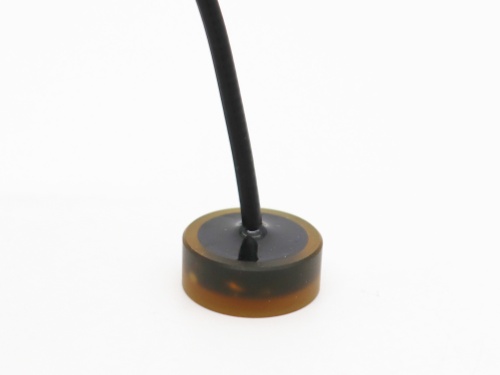

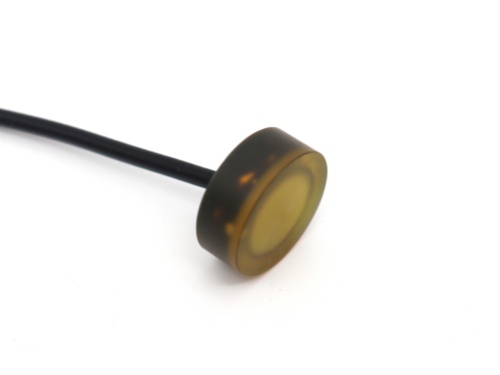

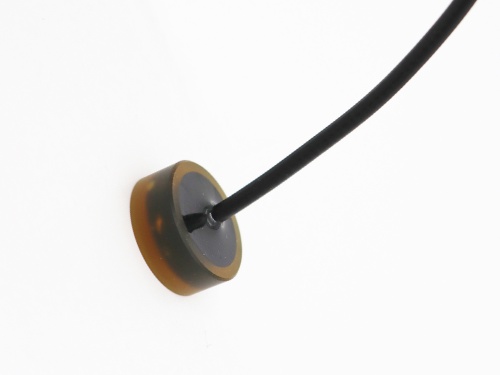

In the field of ultrasonic measurement, a common question arises: Can a transducer rated for a specific purpose also handle other precision measurement tasks? Take Dayu Electronics' DYW-LS-03A ultrasonic transducer as an example. Its specifications clearly recommend it for distance measurement, with a range of 0.3-2.0 meters. This naturally raises concerns among professional users: Can it be used for fluid flow velocity measurement, which demands extremely high precision? The answer is yes, and its performance far exceeds basic expectations. This article aims to professionally analyze how the Dayu Electronics DYW-LS-03A breaks through its initial labeling to achieve accurate and reliable multi-scenario applications in flow velocity measurement.

First, it is essential to clarify a point: the 0.3-2.0 meter range mentioned in the specifications specifically refers to the effective underwater distance measurement range when the transducer is used as a single echo-type distance probe. This reflects its basic ultrasonic emission and reception capability. However, flow velocity measurement is based on more complex ultrasonic physics principles. When applied to flow velocity measurement, the core value of the DYW-LS-03A lies in its high-quality piezoelectric crystal performance, stable acoustic characteristics, and robust packaging, which enable it to adapt to two mainstream ultrasonic flow measurement principles and deliver excellent performance.

In developing an "ultrasonic Doppler flow velocity meter," the DYW-LS-03A is used as a single transducer, measuring flow velocity by detecting the Doppler frequency shift of sound waves reflected by suspended particles or bubbles in the fluid. In this mode, its performance boundaries are significantly expanded. Field measurements show that systems built on this transducer can reliably achieve flow velocity measurements from 0.03 m/s to 5.00 m/s. For systems with well-designed circuits and strong signal processing capabilities, the measurement range can be further extended to 0.02 m/s to 7.00 m/s, sufficient to meet various hydrological monitoring needs from slow to turbulent flows.

In more precise closed pipes or regular channels (such as "transit-time flow measurement boxes" or "box culvert flow meters"), a pair of DYW-LS-03A transducers is typically required, installed in a "counter-facing" mode at both ends of the measurement section. Flow velocity is calculated by precisely measuring the time difference between ultrasonic signals traveling with and against the flow. In such symmetrical, coaxial, and demanding applications, this transducer continues to perform stably. Current technology can achieve flow velocity measurements from 0.02 m/s to 3.00 m/s. Through in-depth circuit optimization and algorithm calibration, high-end systems can achieve performance between 0.01 m/s and 6.00 m/s, meeting the challenges of high-precision metering and wide dynamic range measurement.

Dayu Electronics has always believed that the potential of a superior transducer should not be limited by its initial purpose description. The DYW-LS-03A is exactly such a product. Its solid acoustic foundation allows it to transcend the singular category of "distance measurement" and become a reliable core component for building high-performance ultrasonic flow velocity/flow rate measurement systems. The final system performance is the result of the transducer's excellent nature, well-designed circuits, and advanced signal processing algorithms. We are happy to explore with our customers how to fully unleash the maximum potential of each transducer in professional system design, providing a solid foundation for precise water flow measurement.
