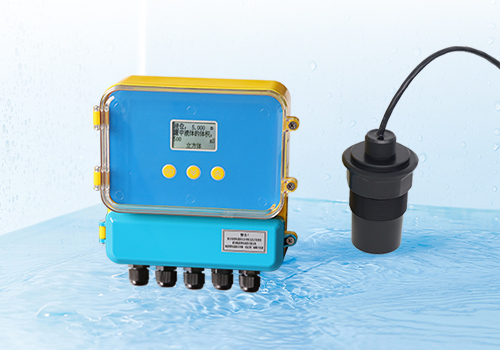

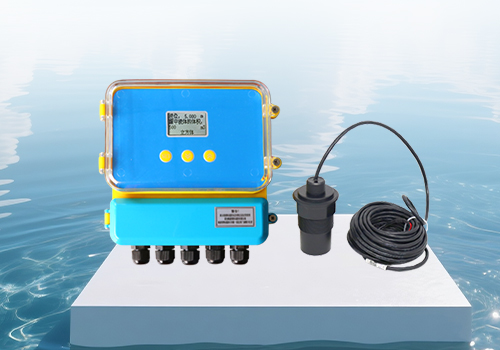

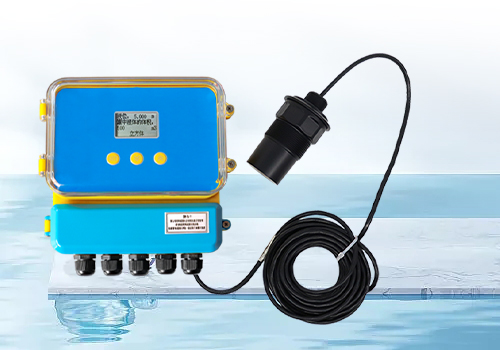

Precision Measurement and Control Solution for 4-Meter Tank Ultrasonic Volume Meter [Dayu Electronics]
In industrial liquid storage and process control, volume monitoring and safety warning for 4-meter-level storage tanks are critical to ensuring production continuity. For working conditions where liquid temperature is below 60°C, the ultrasonic volume meter leverages non-contact measurement advantages, intuitive volume display, and reliable relay alarm output to become the preferred device for integrated tank level-volume management, providing precise and efficient measurement and control solutions for the chemical, food, and pharmaceutical industries.
This device is specially optimized for tank heights around 4 meters, using high-frequency ultrasonic pulse reflection principle. It accurately calculates the distance difference between the probe and the liquid surface and automatically converts volume values based on tank geometric parameters, ensuring high measurement accuracy and resolution for reliable volume data. For liquid temperatures below 60°C, the device features a built-in temperature compensation algorithm that automatically corrects the influence of temperature changes on sound velocity, avoiding measurement deviations, and is suitable for various room-temperature to medium-temperature liquid media such as water, oils, and chemical reagents.
The core functions are deeply aligned with on-site control needs: the device is equipped with a high-definition visual host that displays real-time key data such as current volume and liquid level height, offering intuitive and convenient operation. Users can freely set volume upper and lower alarm thresholds via buttons or remote communication. When the tank volume reaches the preset critical point, the built-in relay immediately triggers an alarm output and can also link with actuators such as pumps and valves to achieve automatic filling or cut-off control, preventing overflow or empty tank risks. The relay output signal is stable and reliable, with strong anti-interference capability, suitable for complex electromagnetic environments in industrial sites.
In terms of installation and usage, the device adopts a non-contact installation design. The probe is deployed on the top of the tank, avoiding obstacles and without contacting the medium, effectively preventing corrosion, scaling, and other issues, thereby extending service life. For the measurement range of a 4-meter tank, the device's blind zone is controlled within a reasonable range to ensure effective monitoring across the full scale. It supports parameter entry for various tank shapes such as cylindrical and rectangular, adapting to different on-site tank structures. The device does not require tank modification, is easy to install and commission, and can be deployed at a single point in a short time, quickly integrating into the existing production control system.
This ultrasonic volume meter, with precise volume measurement, flexible alarm settings, and reliable relay output, perfectly matches the measurement and control needs of 4-meter-level tanks with liquids below 60°C. It not only simplifies manual inspection processes but also enhances operational safety and automation levels of tanks, providing solid data support for material control and cost accounting in industrial production. It is a practical device for intelligent management of small and medium-sized tanks.
