Underwater Distance Sensor Installation Guide: 10m Pressure Rating, Worry-Free Wiring! [Dayu Electronics]

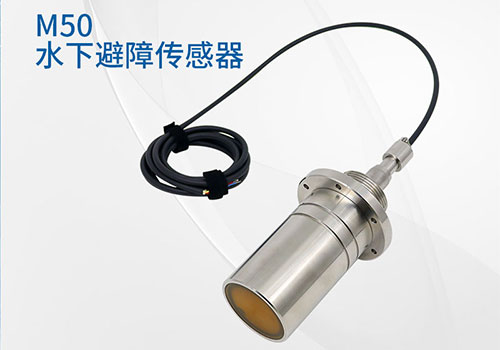

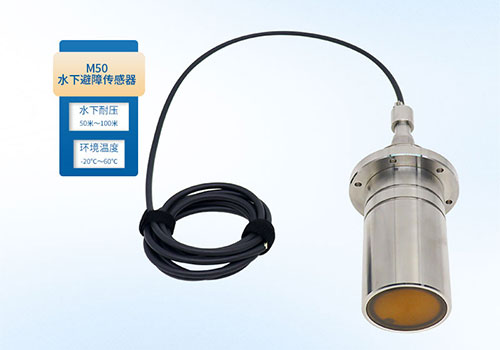

For underwater distance sensors rated for 10m water depth, the installation methods (mounting and wiring) can be summarized as follows:

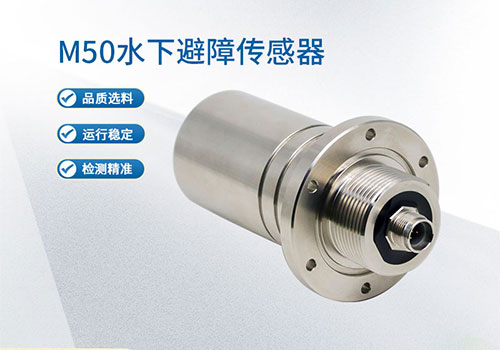

Mounting Method
? Self-locking nut mounting: The sensor usually comes with its own nuts, which you can use to securely fix the sensor in place. This mounting method is simple and reliable, suitable for a variety of installation environments.
Wiring Method
? 24V power supply and RS485 wiring:
? Power supply:
? Red wire: Connect to DC 24V+ (positive terminal).
? Black wire: Connect to DC 24V– (negative terminal), and this wire must be reliably grounded.
? 485 communication:
? White wire: Connect to 485 A.
? Yellow wire: Connect to 485B.
Grounding Requirement
? Power supply negative terminal grounding: As required, connect the power supply negative terminal (black wire) to earth ground to ensure safe operation of the equipment and signal stability.
Precautions
? Installation environment: Ensure the sensor is installed in an underwater environment and that its pressure rating meets the requirement for 10m water depth.
? Wiring correctness: When wiring, make sure each wire is correctly connected to the corresponding terminal to avoid device damage or inaccurate measurements due to misconnection.
? Waterproof measures: Since the sensor is installed underwater, ensure that all wiring ports and mounting nuts have good waterproof performance to prevent moisture from entering the device.
For underwater distance sensors rated for 10m water depth, the installation methods mainly include self-locking nut mounting and 24V power supply with RS485 wiring. During wiring, attention should be paid to the grounding requirement for the power supply negative terminal and the correct connection of each wire. Additionally, ensuring the waterproof performance of the installation environment and the pressure rating of the device is also very important.
